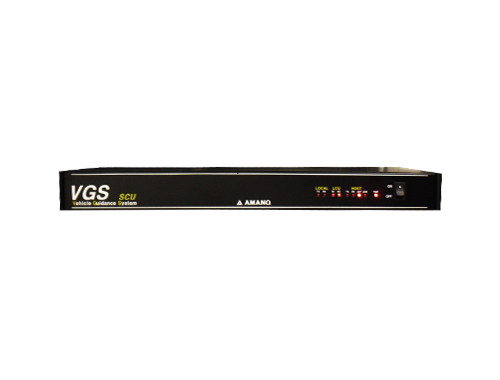

System Control Unit

VGS-SCU

Feature

  • With or without parking for each parking surface, the collected parking surface DATA is received from the zone control device
  • After receiving information, the result of the calculation on the number of parking available is transmitted in real time to the installed information billboard, and the information on the parking status is transmitted to the server
  • Send calculated parking status information to the parking guidance server
  • Information on the entrance information board, the floor information board, and the area information board is transmitted to the parking guidance server and controlled
  • Input voltage: AC85-265V (47~63Hz)
  • Operating temperature: -10℃ to 50℃
  • Usage humidity: 10% to 85% (no condensation)
  • Exterior material: SPC1.0t (powder coating)
  • Communication Method: RS485 (Multi-Drop) Zone Control, RS485 (Multi-Drop) Entrance General Information Board, TCP/IP- Parking Guidance Server
