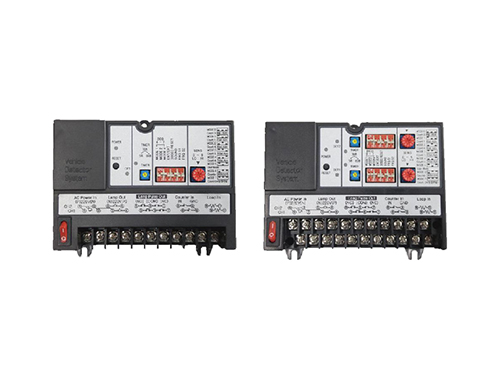

Signal control detector

PD-110 / PD-120

Feature

  • As a vehicle dedicated examination, the vehicle recognizes the variation in the frequency of the roof coil
  • The front panel is equipped with an LED indicating whether the vehicle is detected or not, indicating whether the vehicle is detected or not
  • The design considering the installation of an underground parking lot allows the device to be used without separate adjustment even at a large amount of humidity
  • It is easy to set sensing conditions by adjusting the output time with the voltage-free relay contact output method
  • Sensitivity can be adjusted according to the detected vehicle type
  • Operation mode: 8 mode selection functions
  • Display devices: red LED (power), green LED (sensing), yellow LED (timer)
  • Frequency conversion: High & Low 4 Level adjustable
  • Sensitivity adjustment: 10 steps adjustable
  • Rated power consumption: 2W at all times, 25W at operation
  • Exterior size: 135(W)×97(D)×41(H) mm
  • Exterior/Color: ABS Material/Black
  • Power supply: AC220V, 60Hz
